Steady State Gate

Regular price $259.00 USD
Regular price Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.

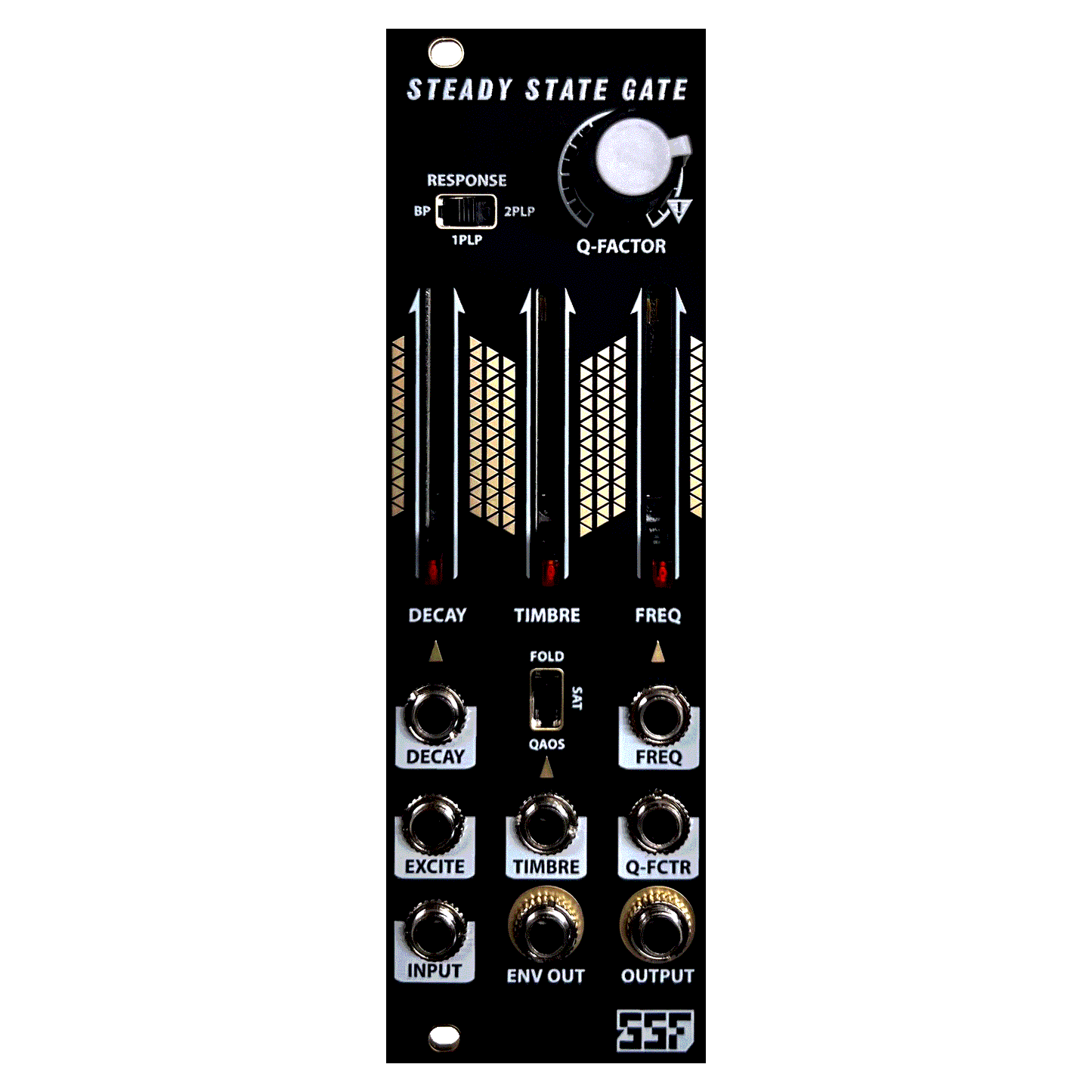

The Steady State Gate is a novel and discrete multi-mode Low Pass Gate including an additional stage of timbre modifying circuitries.

Features:

  • 6db/Oct Bandpass, 6dB/Oct Lowpass and 12dB/Oct Lowpass Filter Modes
  • Manual Frequency Cutoff Control and CV Input
  • Manual Resonance (Q-FACTOR) Control and CV Input
  • Three Timbre Modifying Circuits - Manual Control and CV Input.
    1. Wave Folder
    2. Soft Saturation Overdrive
    3. QAOS (Resonance Character Modifier)
  • Manual and Voltage Controlled Decay Envelope tailored to Vactrol LPG response curve.
  • Envelope output for self patching and controlling external modules
  • EXCITE Input conditions gates and triggers and external envelopes to 'pluck' the Low Pass gate
  • EXCITE is input level sensitive to control the dynamics and emphasis of plucking effects.
  • Sensitive to Envelope attack up to about 50mS
  • The Steady State Gate can also be used as a standalone VCF or as a stand alone VCA with high end roll off - typical of most traditional Low pass gates. With or without Timbre modifiers in play.

Specs

Width: 8hp

Depth: 23mm

Current: +/-75mA
