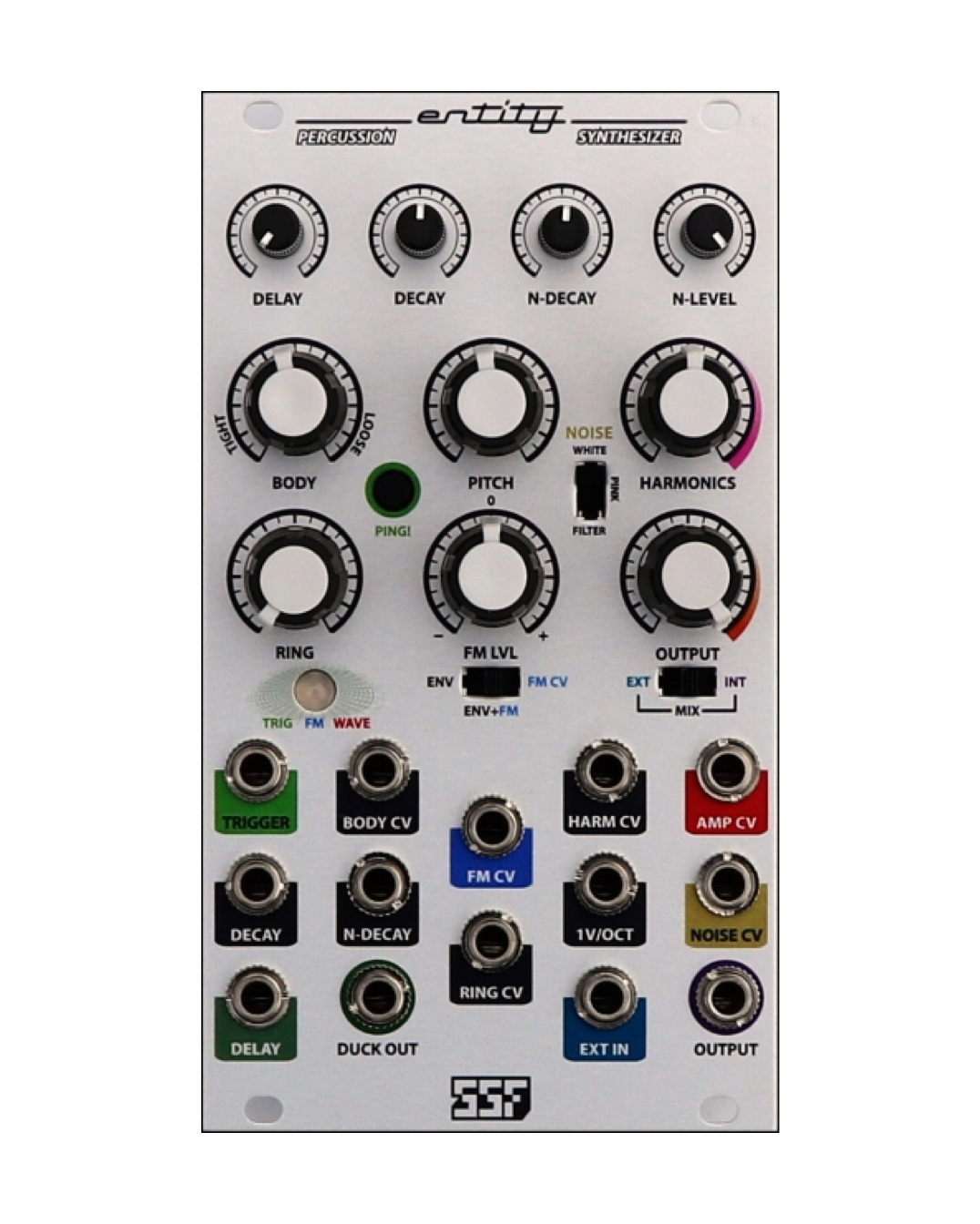

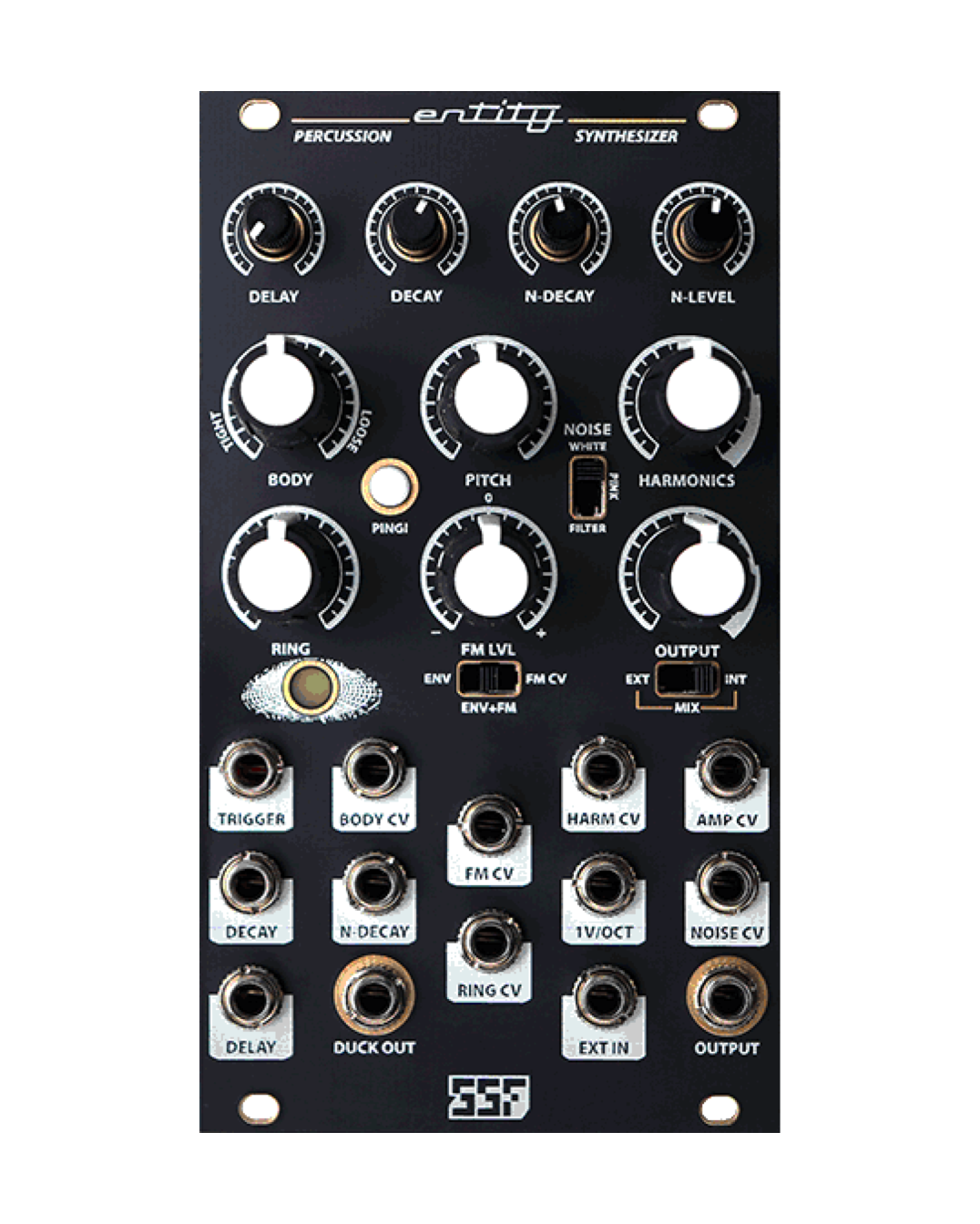

Entity Percussion Synthesizer
Entity Percussion Synthesizer
Percussion Synth Voice
The Entity Percussion Synthesizer is a 100% analog, versatile voice module, geared for designing a huge array of percussion, bass and lead sounds and well suited for processing external audio sources.
The design consists of a high fidelity resonant band pass filter, two voltage controlled decay envelopes, multi-mode noise generator, a high fidelity VCA and a voltage controlled diode wave multiplier. Every parameter on the Entity Percussion is voltage controllable.
Very high fidelity design - no generic op amps used in signal path. Only discrete components and audiophile grade op amps. Signal path is completely isolated from euro power rails. High headroom using hotter signal levels and will cut through any mix.
Specs
Specs
Width: 14hp
Depth: 23mm
Current: 72 mA +12V 125 mA -12V 0 mA 5V
